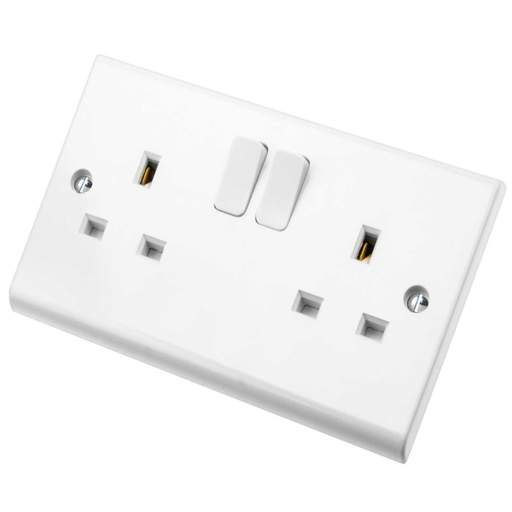

Deta 13A DP 2 Gang Switched Socket
Part Code: S1209SDP
Stock Code: 0111-0283
Deta 13A DP 2 Gang Switched Socket
Part Code: S1209SDP
Stock Code: 0111-0283
Features
- High quality heat resistant frontplates
- Curved rockers
- Fixing screw caps supplied
- Earth pin operated shutters
- Top access angled terminals
- Funnel entry, colour coded terminals
- Recessed earth bar
- Captive, backed out terminal screws
- Clear terminal markings
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Deta
- Colour
- White
- Current Rating
- 13A
- Dimensions
- (H)85 mm x (W)145 mm
- Dual Earth
- Yes
- Fixing Centres
- 120.6mm
- Guarantee
- 25 Years
- Height
- 85mm
- Mounting
- Wall
- Mounting Depth
- 25mm
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Deta Slimline
- Standards
- BS 1363
- Switched Unswitched
- Switched
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 0.16100kg
- Width
- 145mm
