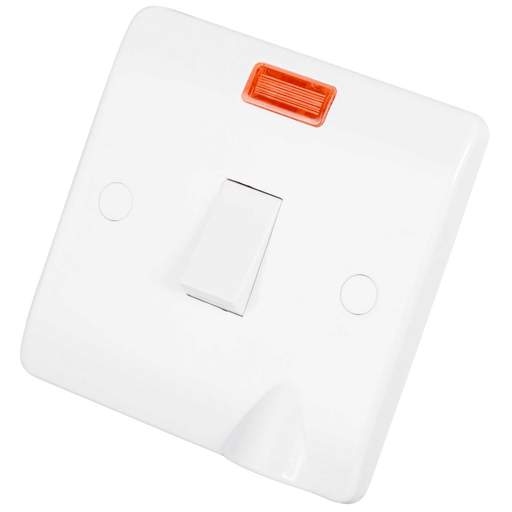

Scolmore Click Mode 20A DP Switch with Neon and Flex Outlet White
Part Code: CMA023
Stock Code: 0509-7553
Scolmore Click Mode 20A DP Switch with Neon and Flex Outlet White
Part Code: CMA023
Stock Code: 0509-7553
Features
- Mode profile
- Double pole control switch with neon
- Flex outlet through bottom
- 20A rated switch
- White moulded
- Fits a 25mm back box
- Conforms to BS EN 60669
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Outlet
- Yes
- Colour
- White
- Compliance
- RoHS
- Current Rating
- 20A
- Depth
- 9.5mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)9.5 mm
- Fixing Centres
- 60.3mm
- Guarantee
- 25 Years
- Height
- 86mm
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- Yes
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Mode
- Standards
- BS EN 60669
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.12100kg
- Width
- 86mm
